REAL PROJECT CASE
Pink Me Full-Body Acrylic Letters with CNC Script
Pink Me combines full-body illuminated acrylic ME letters made from joined, hand heat-bent acrylic sheets with CNC-carved rounded-edge white acrylic script rather than flexible tubing.

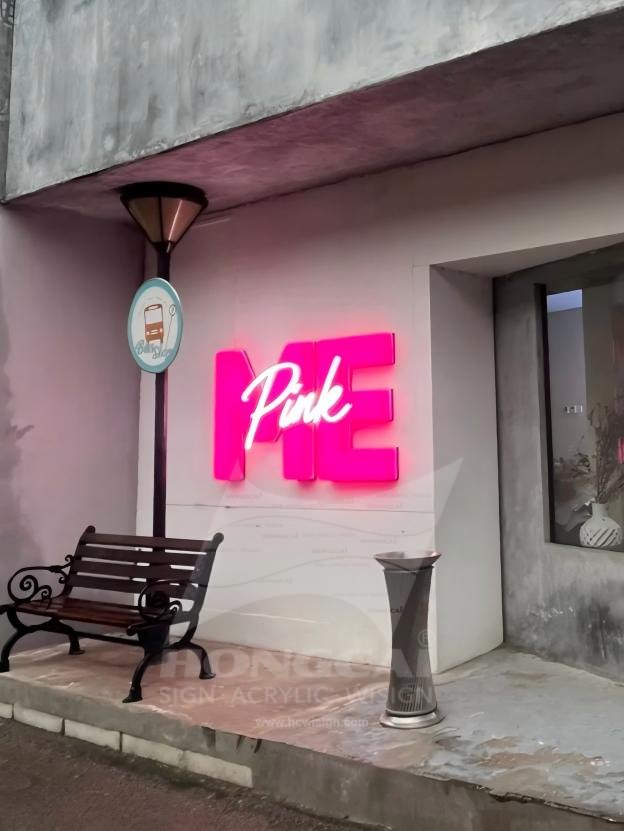

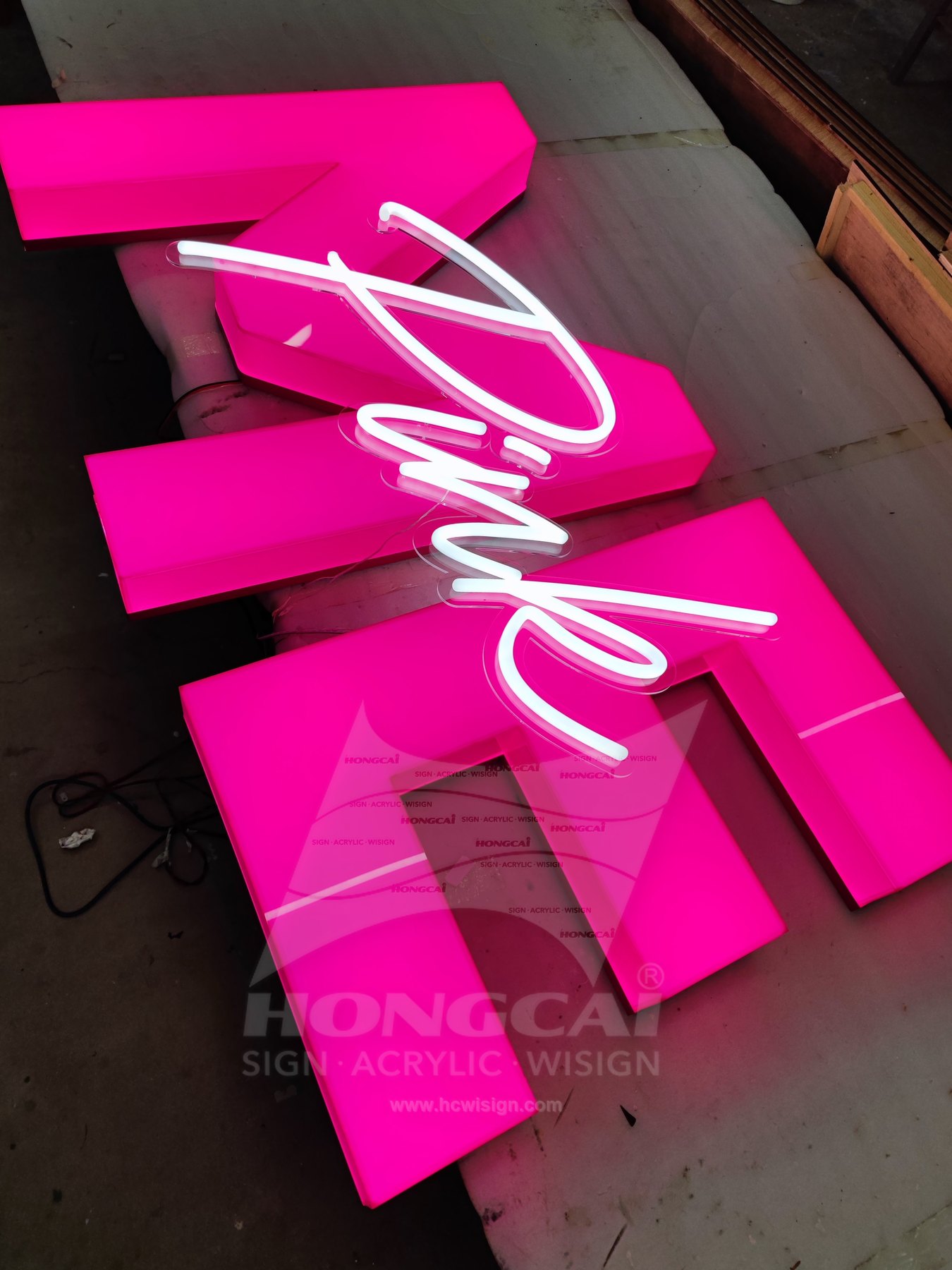

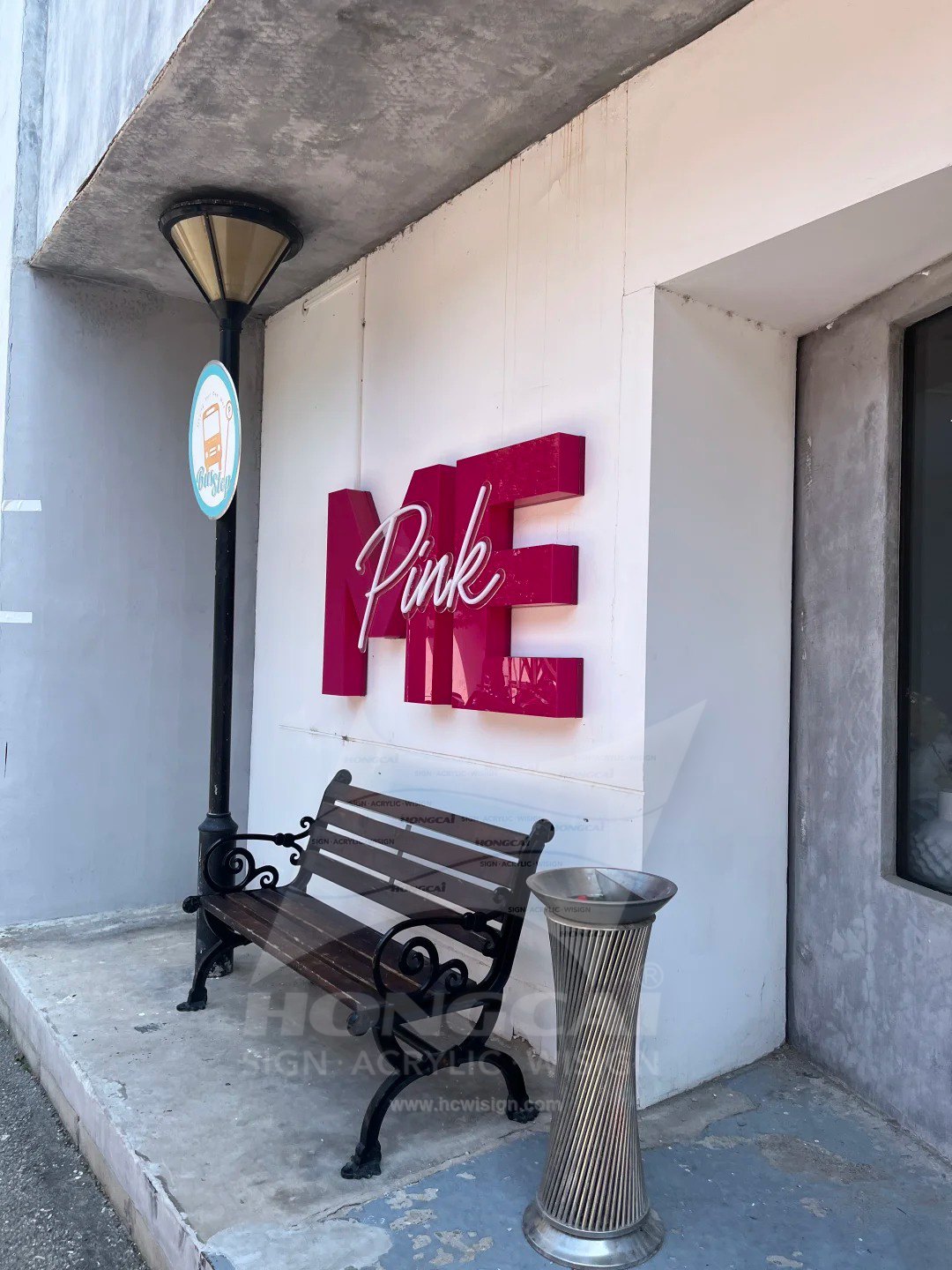

Project Images
These project images document different angles and details for reviewing visible proportions, appearance, and context.
PROJECT GUIDANCE
Pink Me Full-Body Acrylic Letters with CNC Script project overview
The pink ME bodies in the Pink Me case are full-body illuminated acrylic letters. Craftspeople join sections of acrylic sheet and shape the returns and corners through hand heat-bending. The white illuminated script on the surface is not silicone neon tubing; it is CNC-carved rounded-edge acrylic script. Combining these two processes preserves the volume of the glowing pink letters while adding finer white handwriting strokes. Sheet thickness, joints, internal light source, and fixings must be confirmed for each project.
What the project images confirm
- Joined acrylic-sheet sections form the full-body illuminated pink ME letters
- Returns and corners are shaped through hand heat-bending
- The white script is not silicone neon tubing
- CNC-carved rounded-edge acrylic creates the white handwriting strokes

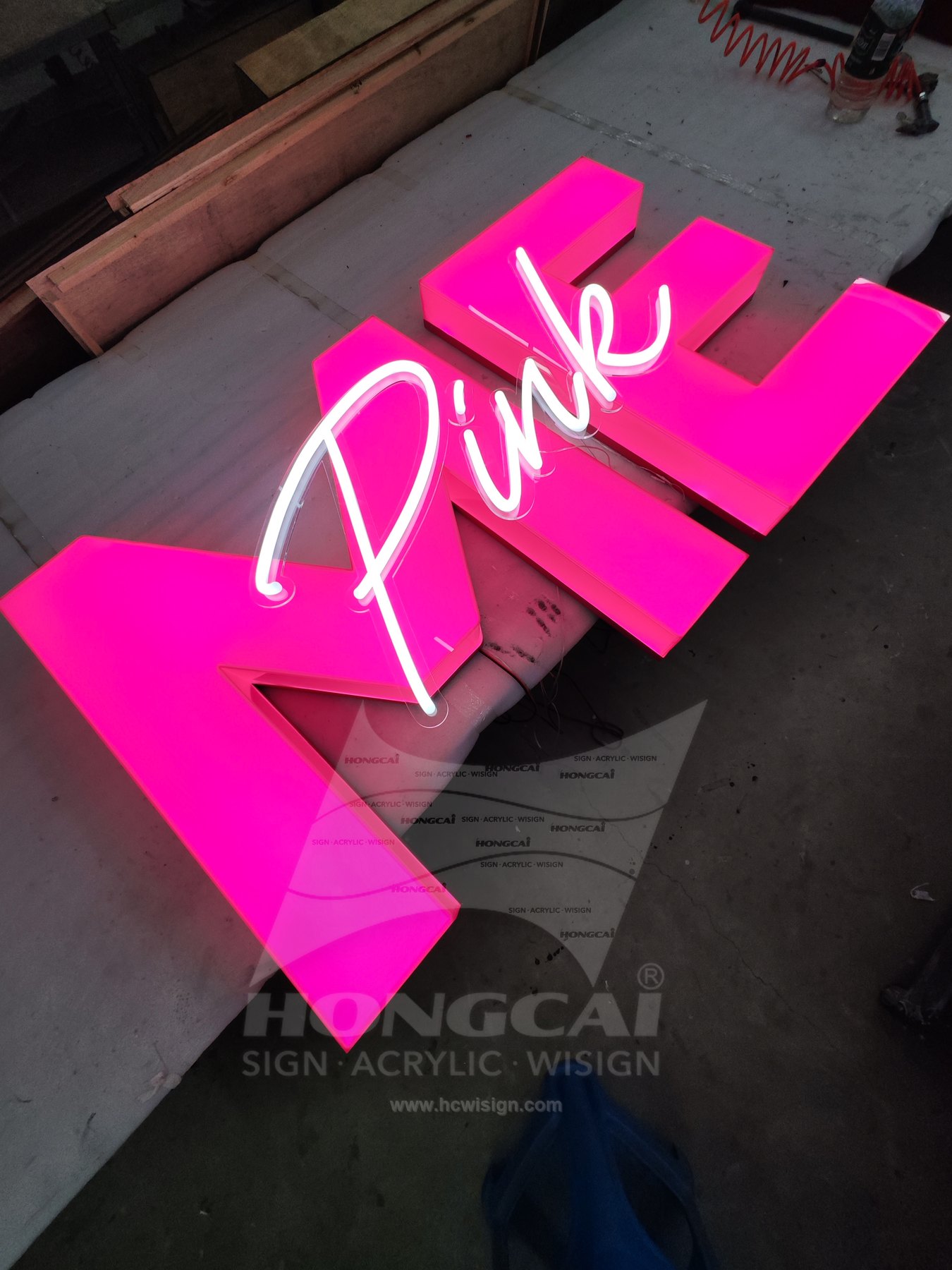

Joined and hand heat-bent acrylic for the pink ME letters
The pink ME is not a simple flat illuminated panel. Sections of acrylic sheet are joined into dimensional bodies, while craftspeople heat the acrylic returns in stages, bend the corners by hand, correct the curves, and join them to the faces. When illuminated, the faces, sides, and corners form one full-body acrylic glow.
CNC-carved rounded-edge acrylic script
The white handwriting on the surface is not silicone neon tubing or flexible light strip attached to the pink faces. Acrylic sheet is CNC-carved into the script profile and processed into rounded-edge acrylic script. The rounded edges help the fine strokes remain visually continuous when illuminated and create a clear contrast with the larger full-body pink letters.
Quotation inputs for a two-process layered sign
For a comparable project, provide separate vector artwork for the ME bodies and white script, overall dimensions, acrylic thickness, main-letter depth, bend radius, joint requirements, script line width and edge radius, pink and white color standards, power location, mounting surface, and operating environment. Crossing points, light-source layout, and maintenance access for both layers should be confirmed in drawings and samples.
Frequently asked questions
Is the white Pink Me script made from silicone neon tubing?
No. The white script is CNC-carved from acrylic sheet and processed into rounded-edge acrylic lettering, not silicone neon tubing or a flexible strip attached to the surface.
How are the full-body illuminated pink ME letters made?
Craftspeople join sections of acrylic sheet into the letter bodies, then heat, bend, and correct the returns and corners by hand before joining, adding the internal light source, and completing illumination checks.
What is needed to quote a similar two-process Pink Me sign?
Provide separate vector artwork for the main letters and script, overall dimensions, acrylic thickness and depth, bend radius, joint standard, script line width and edge radius, colors, light source, mounting surface, and power conditions.
