REAL PROJECT CASE
7-Eleven Graphic Vacuum-Formed Light Box

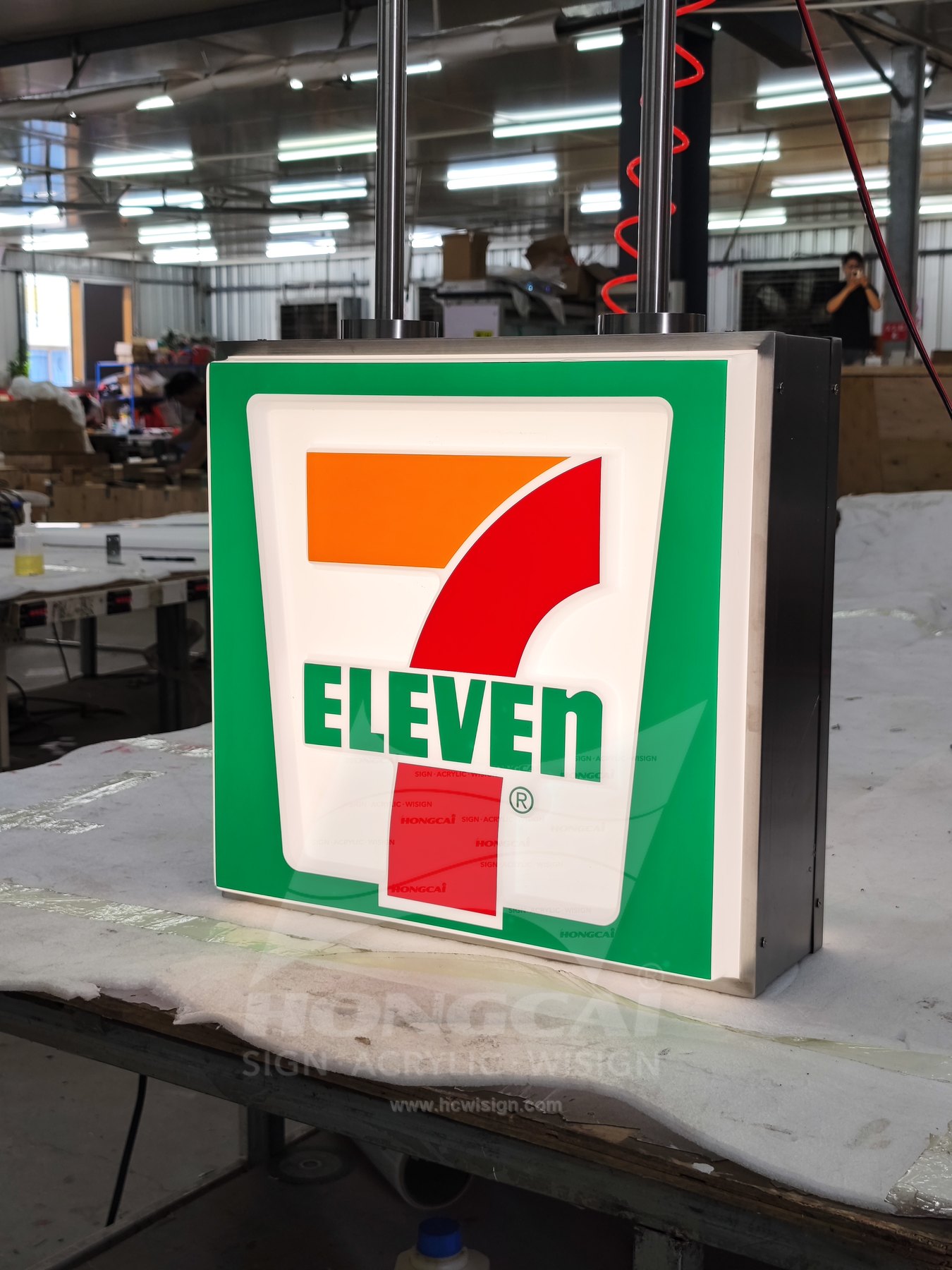

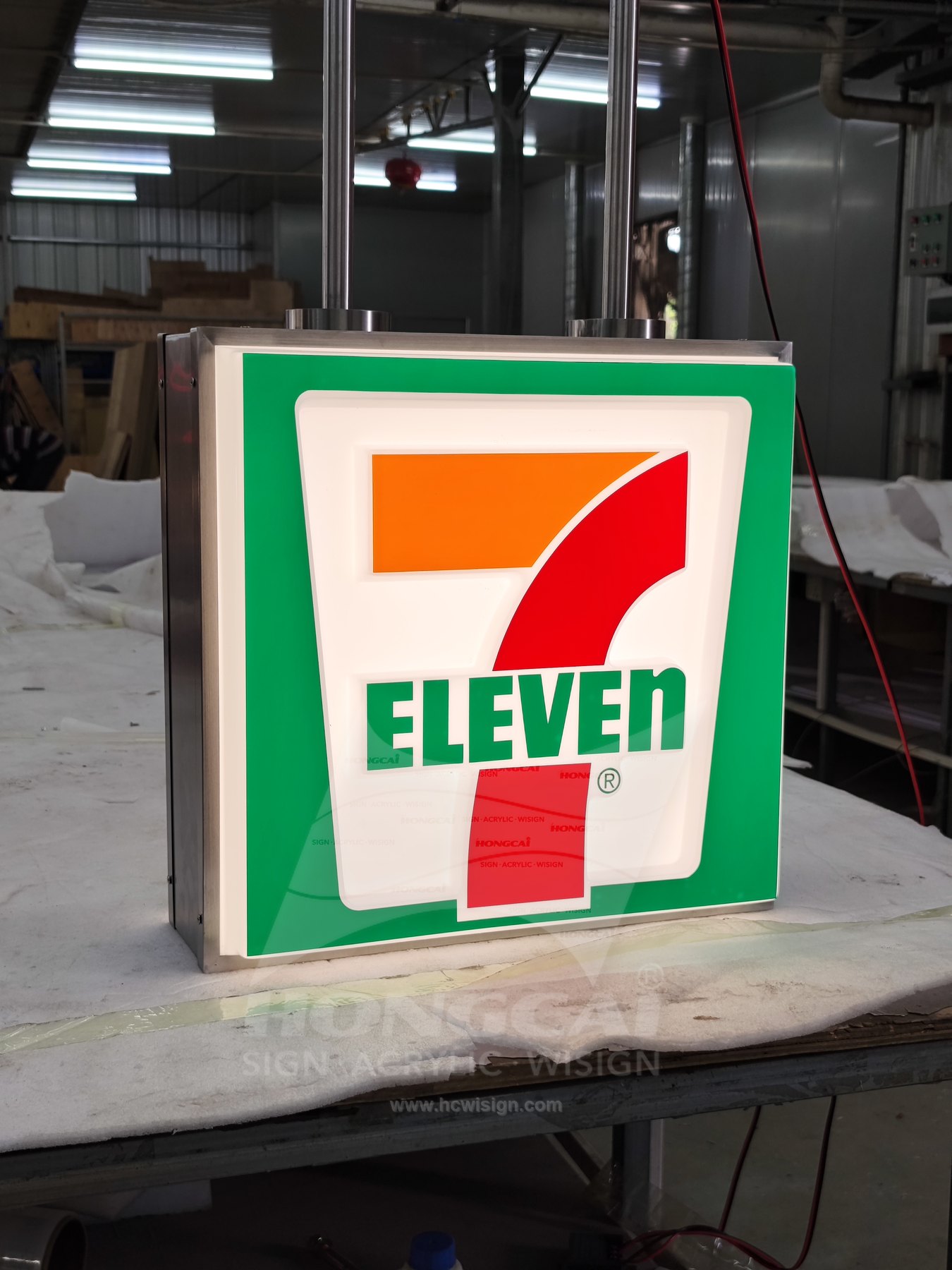

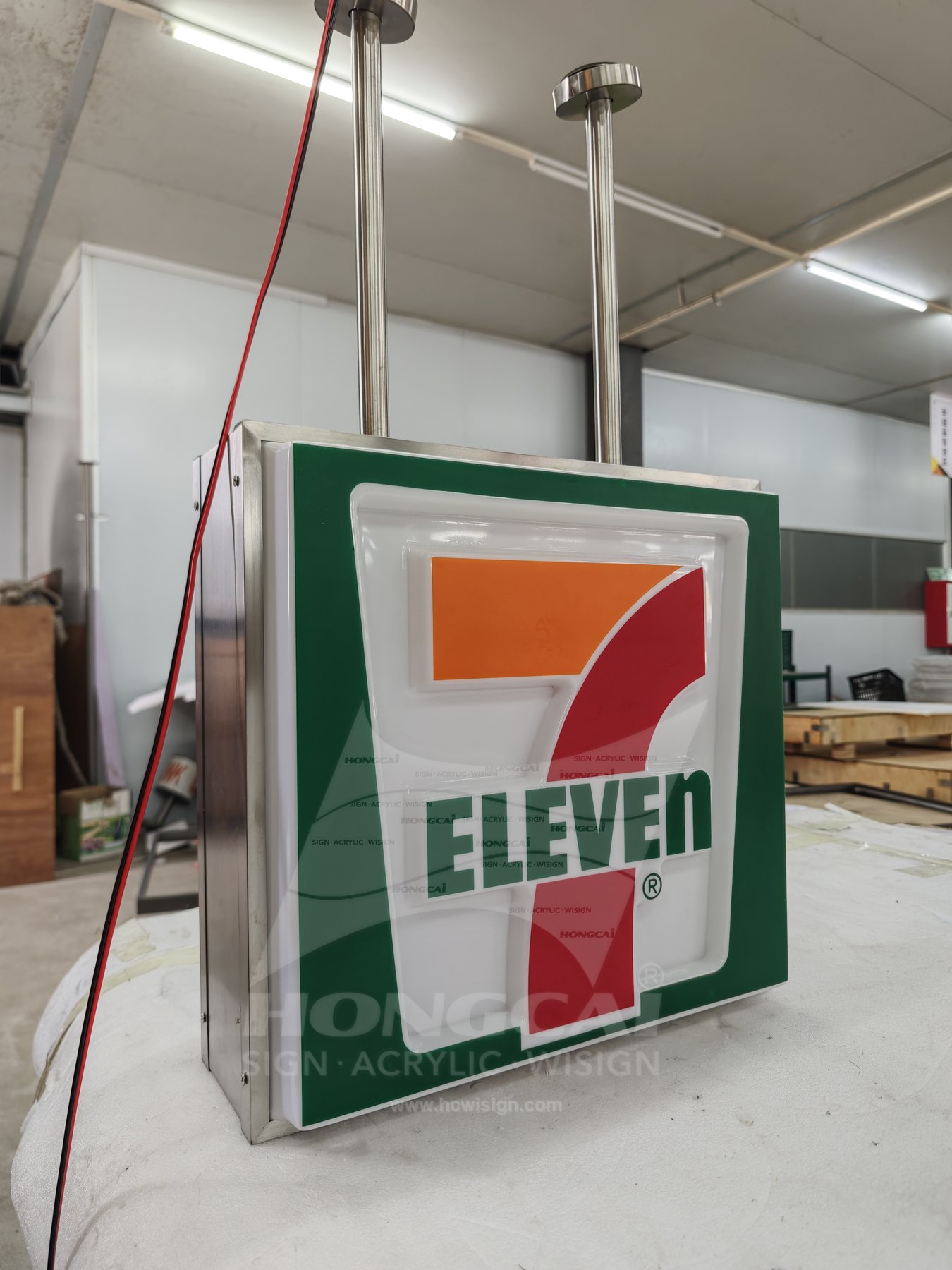

The images show a square rounded vacuum-formed light box with a lit front, raised graphic layers, metallic side housing and top suspension points.
Project Images
These project images document different angles and details for reviewing visible proportions, appearance, and context.
KEEP EXPLORING
Explore three more cases in this category
Self-Service Vacuum-Formed Light Box
This 24-hour self-service light box has a white rounded vacuum-formed face, red-blue graphics, edged sides and wall-mounting connectors.
Brand stores, restaurants, displays, commercial spacesView Project Details
Coffee Rounded Acrylic Light Box
The gallery shows a white rounded Coffee light box in an indoor creative-sign display area, including front and oblique views.
Indoor creative-sign display areaView Project Details
Boutique and Bridal Floor Directory Light Box
An indoor boutique and bridal floor directory uses a softly lit textured face with floor text and a downward arrow at a wall corner.
Brand stores, restaurants, displays, commercial spacesView Project DetailsPROJECT GUIDANCE
7-Eleven Graphic Vacuum-Formed Light Box project overview
This rounded square vacuum-formed light box carries 7-Eleven graphics on an illuminated face with raised layers. A metallic side housing and top suspension points complete the enclosure. For a custom project, artwork, finished dimensions, viewing directions, and suspension conditions determine the face profile and housing structure.
Design and fabrication highlights
- A rounded square vacuum-formed face creates the overall enclosure profile
- Green border, white illuminated field, and raised red-orange graphics form layered depth
- Metallic side housing and top connectors show the suspension orientation
The formed face combines enclosure shape and graphic depth
The rounded square outline supports front-facing recognition, while raised graphics retain depth when illuminated. Comparable work should adjust minimum details and edge transitions around authorized artwork, viewing distance, and forming constraints.
Quotation and mounting inputs for a suspended light box
Provide authorized artwork, finished dimensions, one- or two-sided requirement, suspension and load conditions, power location, indoor or outdoor setting, quantity, and destination. Enclosure depth, face construction, rods, and service access are set in the engineering drawing.
Checks for the formed face and suspension
Check the formed surface and rounded transitions, raised-graphic alignment, front illumination uniformity, metallic side housing, top connectors, suspension direction, and colors against the approved artwork.
Frequently asked questions
Does this formed light box suit one- or two-sided display?
This case shows the front graphic and side housing. A new project should confirm one- or two-sided construction from viewing directions, suspension position, and service access before quotation.
Can a vacuum-formed face include raised graphics?
Raised graphic layers are visible in this case. A new project should confirm them against artwork, forming depth, minimum detail, and sample appearance.
Which details are needed for a suspended-light-box quotation?
Provide dimensions, weight or construction target, suspension substrate, power location, viewing sides, quantity, and site photos.
